Core Equipment Configuration
Full-process Performance Optimization, Precisely Matching the Characteristics of Thin Page Paper Production

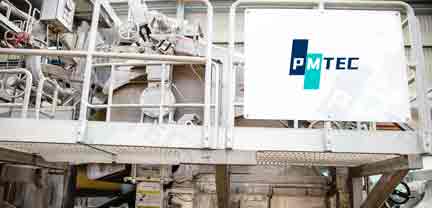

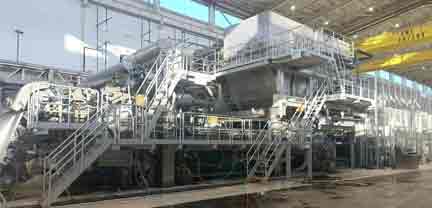

Crescent Former
Single-layer Structure
Economical solution suitable for 12-25g/m² toilet paper (speed: 700m/min)
Dual-layer Composite Structure
High bulk solution supporting 25-50g/m² hand towels (speed: 1200m/min)

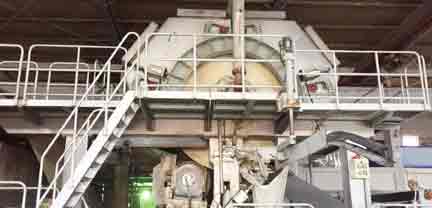

Yankee Dryer System
- 10kg/cm² pressure-bearing steel Yankee cylinder (surface chrome hardness HRC62-65)
- Optional Through-Air Drying (TAD) system (bulk increase of 30%-40%)
- Steam condensate recovery system (energy saving rate ≥18%)

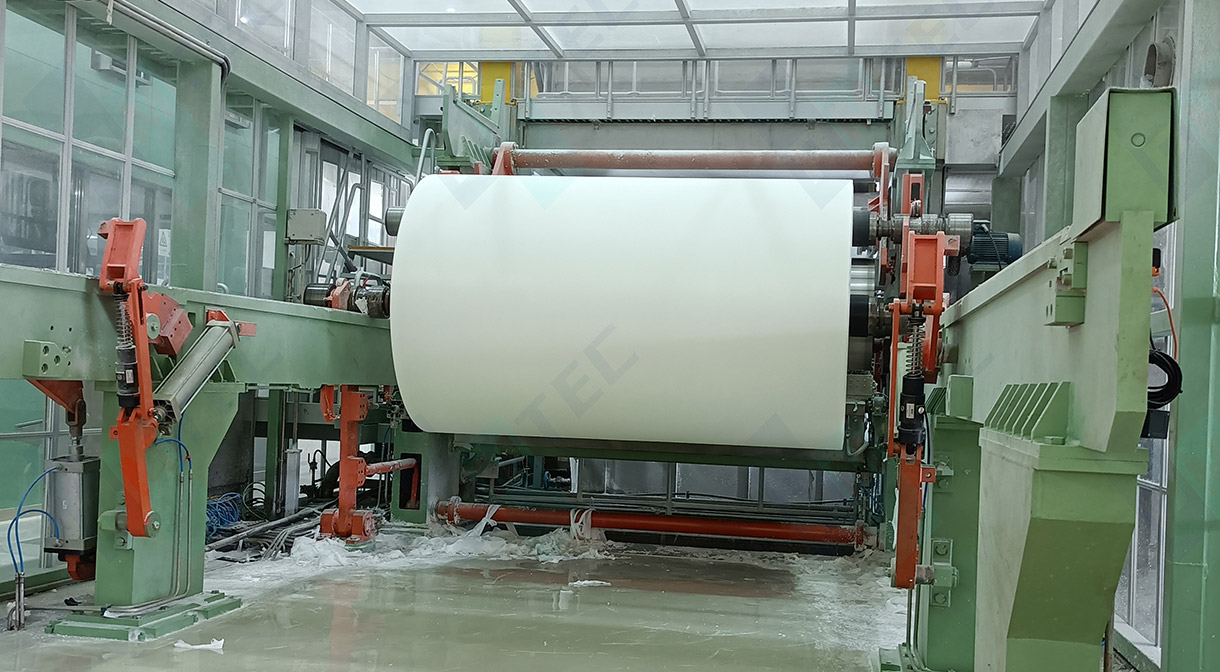

Intelligent Embossing and Rewinding
- Flexible embossing unit (embossing depth adjustable from 0.15-0.3mm)
- Dual bottom roll rewinder (roll diameter Φ2800mm±1.5mm, tension fluctuation ≤±1%)
- Automatic cutting system (cutting accuracy ±0.1mm)
Made in China Core Advantages
Compact Design + Raw Material Flexibility + Rapid Response
Flexible Configuration
Speed Grades
Economical type 700m/min, Standard type 1200m/min, High-end type 1600m/min
Fiber Adaptability
Compatible with 100% virgin wood pulp/bamboo pulp
Recycled pulp blending system (OCC pulp ratio ≤30%)
Investment Return Guarantee
Comprehensive cost of Yankee cylinder is 35% lower than European solutions
Full Lifecycle Service Support
One-stop Delivery from Design to Operation
- Construction Implementation
• CE certified manufacturing + local safety compliance adaptation
• Chinese engineers on-site debugging (≤30 days to production cycle)
- Smart Maintenance
• Cloud-based production dashboard (dynamic tracking of 14 KPIs)
