Core Process Flow
The zero-waste journey from waste paper bales to high-quality pulp
1.Waste paper unpacking → 2. D-shaped continuous crushing → 3. Multi-stage slag removal and purification → 4. Fiber classification and screening → 5. Concentrated heat dispersion → 6. Energy-saving pulping
(Supports one-button start and stop, and full-process intelligent monitoring)
Five technical highlights of PM Tech
| Technology Modules | Innovative design | Customer Benefits |

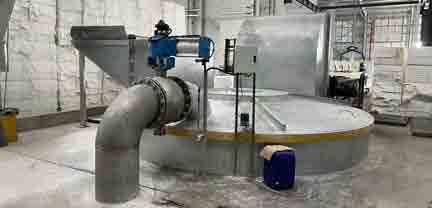

| D-shaped continuous crushing system | Low concentration gradient crushing + dynamic kneading technology | Crushing efficiency increased by 40% and energy consumption reduced by 30% |
| Intelligent two-stage slag removal | High concentration slag removal + centrifugal light separation double-stage cascade control | Plastic residue <50ppm, sand and gravel removal rate ≥99% |

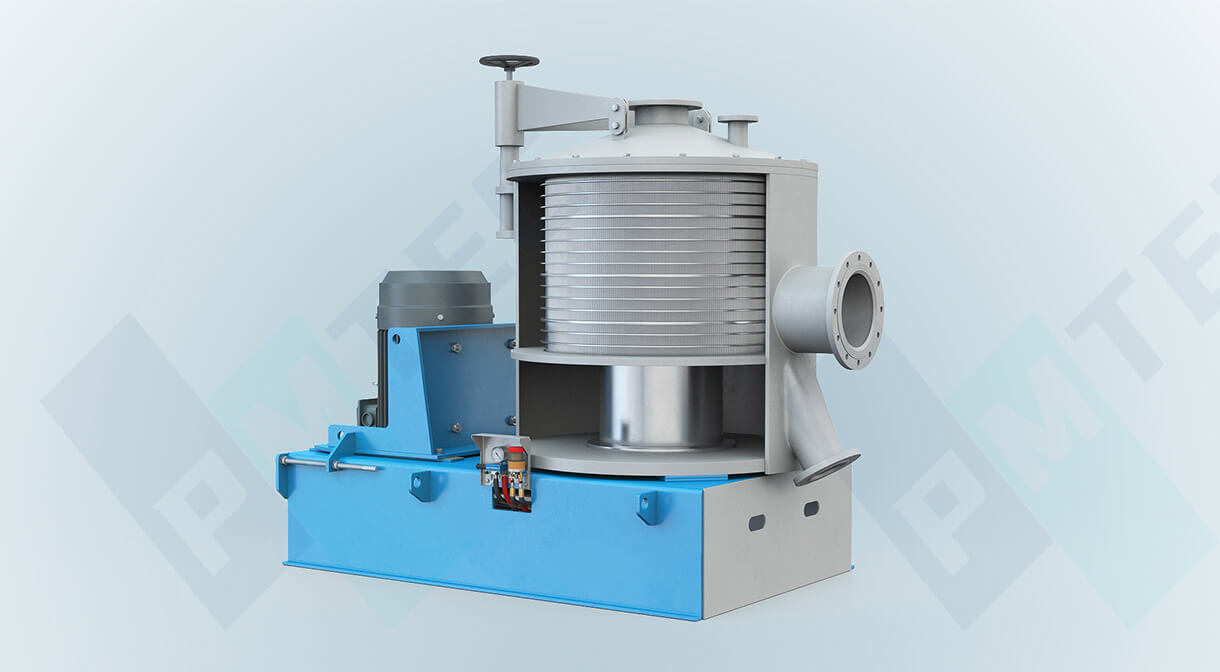

| Mixed screening technology for bent pipes | Unpowered hybrid + high frequency pulse suppression | Screening energy consumption reduced by 20% and maintenance costs reduced by 35% |
| Vacuum multi-disc concentrating system | Gradient pressure difference stripping + fiber lossless recovery | Concentration efficiency increased by 25%, water consumption ≤5m³/t |
| Dual drive energy-saving refining | Constant energy control + grinding disc gap self-calibration | Beating degree fluctuation ≤2°SR, power consumption per ton of pulp ≤75kWh |
Performance Parameters
- Processing capacity: 50-1000 T/D (supports multi-line parallel expansion)
- Suitable raw materials: Mainstream waste paper categories such as US waste and local waste paper
Key Metrics
- Fiber yield ≥92%
- System energy consumption ≤110kWh/t
- Wastewater recycling rate ≥ 85%
Why PM Tech?
Technical Accumulation
- The core team has more than 15 years of experience in the research and development of waste paper recycling equipment
Highly Durable Hardware
- The crushing rotor adopts wear-resistant composite ceramic coating (wear rate ≤ 0.1mm/year)
- Screen drum life ≥ 24 months, stable operation over 30,000 hours
Global Service Network
- 48-hour remote fault diagnosis and 7-day emergency spare parts delivery worldwide
- Free production line energy efficiency optimization solutions
